Buffalo
TeraStation
6400RN

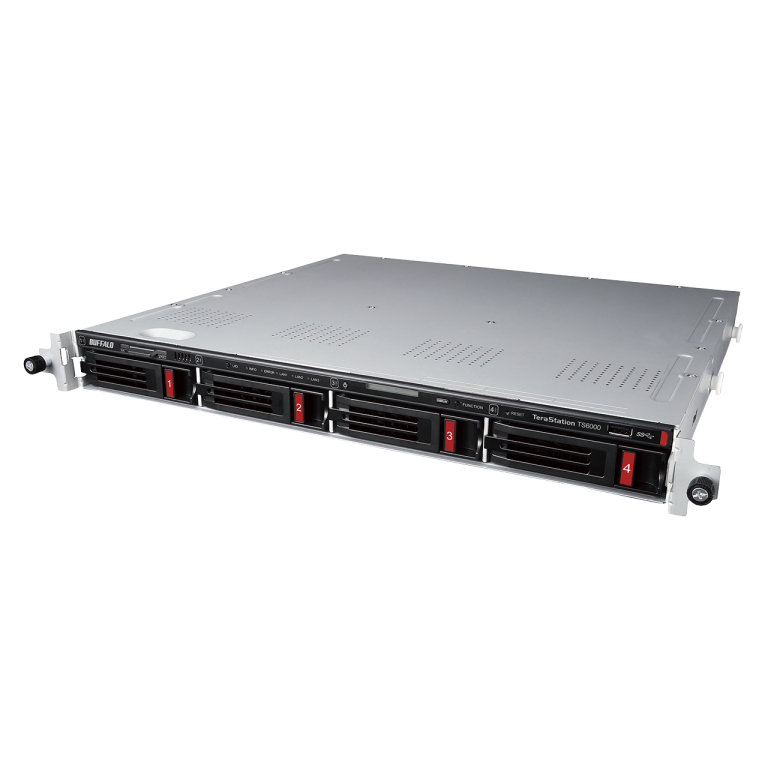

Buffalo TeraStation 6400RN, 32 TB, HDD, HDD, Serial ATA III, 8000 GB, Serial ATA III
4-bay NAS with advanced Snapshot feature and iSCSI Volume Backup.
The TeraStation™ 6000 NAS series has been especially designed for small and medium sized businesses in need of a highly reliable network storage solution with advanced backup features, powerful hardware and iSCSI protocol.
High transmission speed
The 10GbE connectivity impresses with exceptional speed.
iSCSI Volume Backup
iSCSI Volume Backup is a key feature of TS6000. If TS6000 is used to expand storage capacity of a server, the iSCSI volume backup allows data to be transferred directly from one TS6000 to another TS6000, without having to go through the server and thus reducing the server load significantly.
Snapshot and snapshot backup
Thanks to snapshot and snapshot backup functionality, restoring files after editing mistakes or accidental deletion can be done easily and fast. Backups can be performed without errors during the day while employees are working on the files. This makes the TS6000 an ideal file server solution for companies working with CAD data and photo or video editing agencies. Performing snapshots regularly is also a great measure against ransomware attacks.
iSCSI target support
Works simultaneously as NAS and iSCSI target.
Including Buffalo VIP service
Replacement of defective hard disks within 24 hours
If you want to replace a defective hard disk, just let us know. If your order is in the system before 12 noon and the hard drives are in stock, they will be replaced within 24 hours. Applies within the 3 year warranty for each TeraStation and LinkStation NVR sold in the EU. (Outside the EU it can take longer).
Hot-swap function increases data security
With the hot swap function, the TeraStation™ automatically switches off the defective hard disk even if one hard disk fails, so that it can be replaced safely without interrupting work or losing data.
Intuitive web management interface
The web interface has a dashboard that offers the user more effective views of system status, the ability to resize windows (even on the phone) and a more comfortable button layout.
Replication with TeraStation
By replication, a folder in two separate TeraStations™ is synchronized almost in real time. This only happens in one direction (not bi-directional) – from the source to the destination. This function can be set up in LAN and WAN. WAN setup includes remote connection via port forwarding and VPN setup.
Equipped with reliable NAS HDDs
This series is completely equipped with special NAS hard drives – for even more performance and reliability in RAID and continuous operation.
NovaStor Backup
Including 11 licenses NovaBACKUP® Buffalo Edition software. NovaBACKUP® provides small and medium-sized companies that value the protection of their digital data with a complete data security solution in one package.
Allocation of disk quota
Hard disk quotas prevent the misuse of storage space by allocating appropriate amounts of storage to users.
Buffalo 6400RN, TeraStation. Total installed storage capacity: 32 TB, Installed storage drive type: HDD, Supported storage drive types: HDD. Processor frequency: 2.1 GHz, Processor family: Intel® Atom™, Processor model: C3538. Internal memory: 8 GB, Internal memory type: DDR4. Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: TCP/IP, UDP. Chassis type: Rack (1U), Product colour: Black
NAS & storage servers
| 600454 | |
| Storage | |
| Total installed storage capacity: | 32 TB |
| Storage drives installed: | Y |
| Installed storage drive type: | HDD |
| Number of storage drives installed: | 4 |
| Supported storage drive types: | HDD |
| Number of storage drives supported: | 4 |
| Storage drive interface: | Serial ATA III |
| Storage drive capacity: | 8000 GB |
| RAID support: | Y |
| Hot-swap drive bays: | Y |
| Supported storage drive interfaces: | Serial ATA III |
| RAID levels: | 0,1,5,6,10,JBOD |
| Processor | |
| Processor frequency: | 2.1 GHz |
| Processor family: | Intel® Atom™ |
| Processor model: | C3538 |
| Processor cores: | 4 |
| Memory | |
| Internal memory: | 8 GB |
| Internal memory type: | DDR4 |
| Networking | |
| Ethernet LAN: | Y |
| Wi-Fi: | N |
| Ethernet LAN data rates: | 10,100,1000,2500,5000,10000 Mbit/s |
| Ethernet LAN data rate supported (max): | 10000 Mbit/s |
| iSCSI support: | Y |
| Supported network protocols: | TCP/IP, UDP |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 3 |
| USB port: | Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Design | |
| Chassis type: | Rack (1U) |
| Product colour: | Black |
| Performance | |
| Type: | NAS |
| Device class: | Home & Home Office |
| Backup function: | Y |
| Backup features: | Cloud,iSCSI LUN |
| Web-based management: | Y |
| Software | |
| Operating system installed: | Linux |
| Windows operating systems supported: | Windows 10,Windows 7,Windows 8.1 |
| Mac operating systems supported: | Mac OS X 10.11 El Capitan |
| Server operating systems supported: | Windows Server 2008,Windows Server 2012,Windows Server 2016 |
| Power | |
| Power consumption (typical): | 64 W |
| Power consumption (max): | 100 W |
| Power consumption (HDD standby): | 6 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Weight & dimensions | |
| Width: | 430 mm |
| Depth: | 430 mm |
| Height: | 44.3 mm |
| Weight: | 8.9 kg |
| Packaging content | |
| Cables included: | AC |
| Quick start guide: | Y |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 10 - 85% |
