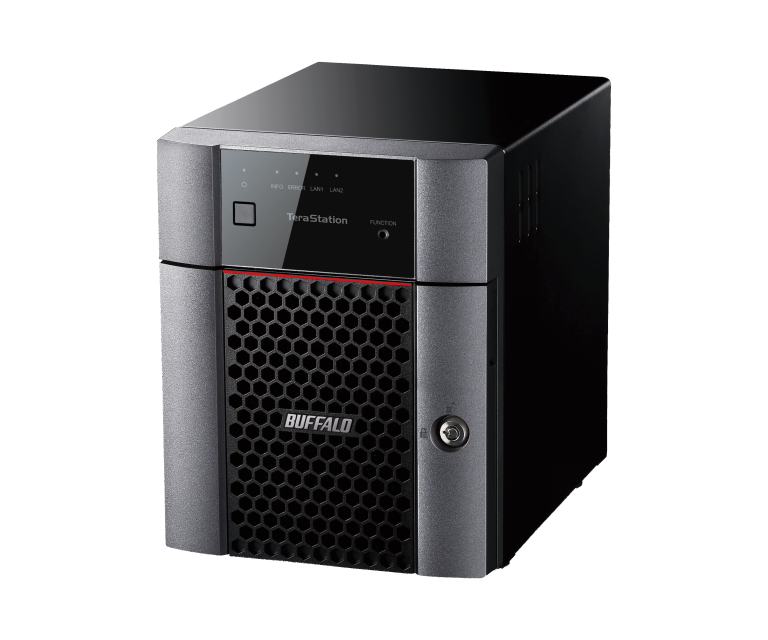

Buffalo
TeraStation
3420DN
Buffalo TeraStation 3420DN, 16 TB, HDD, HDD,SSD, Serial ATA III, 4000 GB, Serial ATA III
Great value, high performance NAS. 4 bay business NAS with integrated multigigabit port.
The TeraStation™ 3420 series is a high-performance, cost-effective 4-bay Network Attached Storage (NAS) solution, ideal for small businesses and demanding small office and home office (SOHO) users. With a powerful Annapurna Labs Alpine AL-214 1.4 GHz quad-core processor, it provides speedy transfer rates and stable operation during heavy-load work tasks. The robust central processing unit (CPU) and 1 GB of DDR3 RAM means it can run multiple services simultaneously. This allows businesses to focus on concurrent tasks with minimal performance degradation.
Rsynch Feature
Users can make backup copies from TeraStation to a rsync-compatible device from another manufacturer. This function also allows backups to be made from another manufacturer’s rsync-compatible NAS to the TeraStation NAS.
Active Directory
TeraStation functions as a client of an Active Directory domain, so that domain users and groups can be used. This means that they can be used in domain environments of companies with up to 10,000 users and groups.
Cloud-ready!
Buffalo’s TeraStation Series features B-Sync, which allows users to easily synchronize files between their TeraStation and 3rd party cloud services to make backups. The Buffalo NAS supports Amazon S3 Cloud Services, Dropbox, OneDrive and Azure.
Including Buffalo VIP service
Replacement of defective hard disks within 24 hours
If you want to replace a defective hard disk, just let us know. If your order is in the system before 12 noon and the hard drives are in stock, they will be replaced within 24 hours. Applies within the 3 year warranty for each TeraStation and LinkStation NVR sold in the EU. (Outside the EU it can take longer).
Intuitive web management interface
The web interface has a dashboard that offers the user more effective views of system status, the ability to resize windows (even on the phone) and a more comfortable button layout.
Equipped with reliable NAS HDDs
This series is completely equipped with special NAS hard drives – for even more performance and reliability in RAID and continuous operation.
Replication with TeraStation
By replication, a folder in two separate TeraStations™ is synchronized almost in real time. This only happens in one direction (not bi-directional) – from the source to the destination. This function can be set up in LAN and WAN. WAN setup includes remote connection via port forwarding and VPN setup.
iSCSI target support
Works simultaneously as NAS and iSCSI target.
NovaStor Backup
Including 11 licenses NovaBACKUP® Buffalo Edition software. NovaBACKUP® provides small and medium-sized companies that value the protection of their digital data with a complete data security solution in one package.
Allocation of disk quota
Hard disk quotas prevent the misuse of storage space by allocating appropriate amounts of storage to users.
Buffalo 3420DN, TeraStation. Total installed storage capacity: 16 TB, Installed storage drive type: HDD, Supported storage drive types: HDD,SSD. Processor frequency: 1.4 GHz, Processor family: Annapurna Labs. Internal memory: 1 GB, Internal memory type: DDR3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Supported network protocols: TCP/IP. Chassis type: Desktop, Product colour: Black
NAS & storage servers
| 600441 | |
| Storage | |
| Total installed storage capacity: | 16 TB |
| Storage drives installed: | Y |
| Installed storage drive type: | HDD |
| Number of storage drives installed: | 4 |
| Supported storage drive types: | HDD,SSD |
| Number of storage drives supported: | 4 |
| Storage drive interface: | Serial ATA III |
| Storage drive capacity: | 4000 GB |
| RAID support: | Y |
| Hot-swap drive bays: | Y |
| Supported storage drive interfaces: | Serial ATA III |
| RAID levels: | 0,1,5,6,10,JBOD |
| Processor | |
| Processor frequency: | 1.4 GHz |
| Processor family: | Annapurna Labs |
| Processor cores: | 4 |
| Memory | |
| Internal memory: | 1 GB |
| Internal memory type: | DDR3 |
| Networking | |
| Ethernet LAN: | Y |
| Wi-Fi: | N |
| Ethernet LAN data rates: | 10,100,1000,2500 Mbit/s |
| iSCSI support: | Y |
| Supported network protocols: | TCP/IP |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 2 |
| USB port: | Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Design | |
| Chassis type: | Desktop |
| Product colour: | Black |
| Performance | |
| Type: | NAS |
| Device class: | Home & Home Office |
| Backup function: | Y |
| Backup features: | Cloud |
| Web-based management: | Y |
| Software | |
| Operating system installed: | Linux |
| Windows operating systems supported: | Windows 10,Windows 7,Windows 8.1 |
| Mac operating systems supported: | Mac OS X 10.11 El Capitan |
| Server operating systems supported: | Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Power | |
| Power consumption (typical): | 57 W |
| Power consumption (max): | 85 W |
| Power consumption (HDD standby): | 0.91 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Weight & dimensions | |
| Width: | 170 mm |
| Depth: | 230 mm |
| Height: | 215 mm |
| Weight: | 7.1 kg |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 10 - 85% |
If you feel like anything is missing in these specifications, don't hesitate to contact us and raise the issue.
