iiyama
ProLite
TF1534MC-B6X
iiyama ProLite TF1534MC-B6X, 38.1 cm (15"), 8 ms, 370 cd/m², TN, 700:1, 1024 x 768 pixels

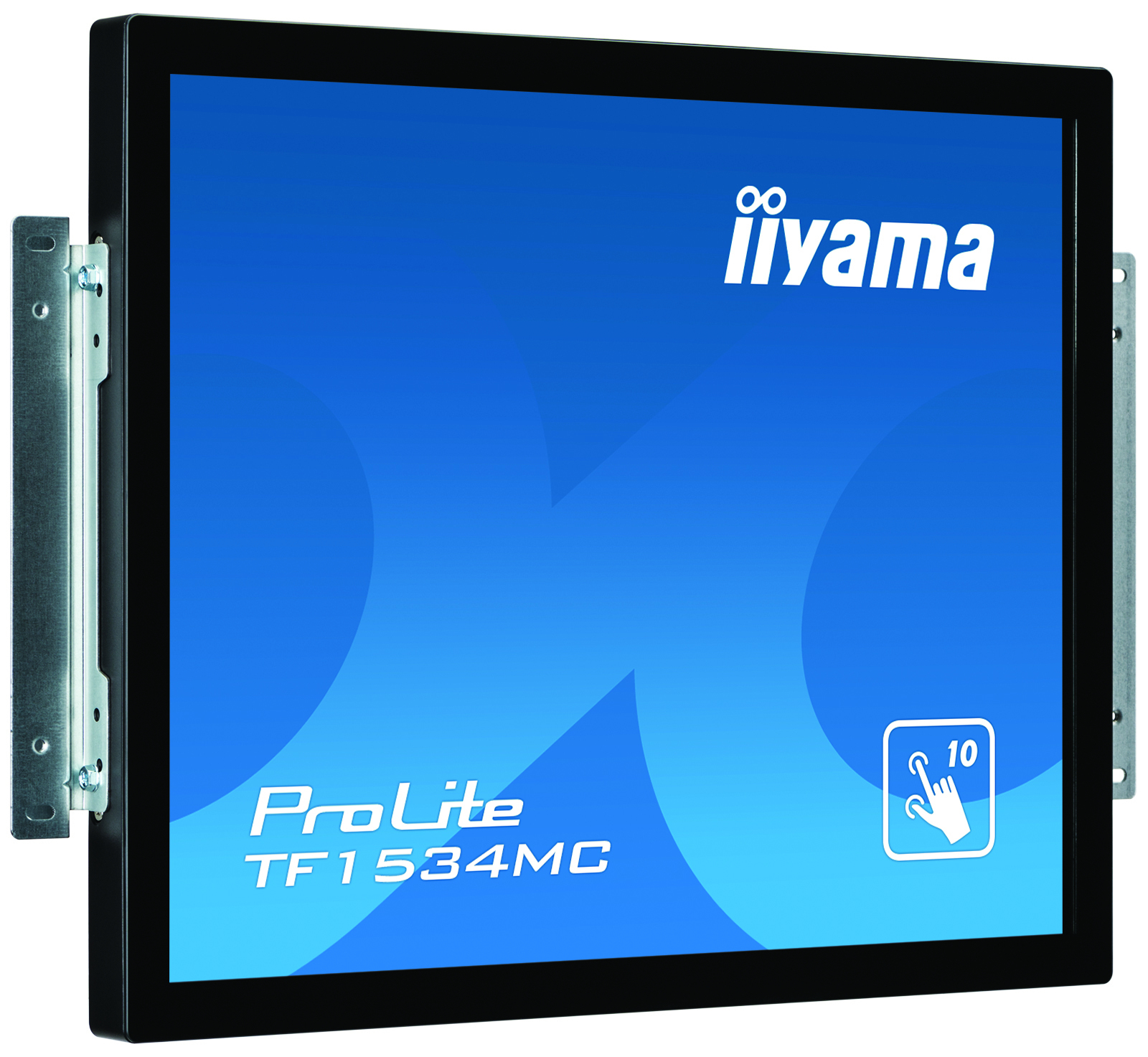

The ProLite TF1534MC-B6X 15" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The screen is IP65 rated which means it is dust and water resistant from the front. For ease of installation in any environment the ProLite TF1534MC-B6X comes equipped with external mounting brackets making it an ideal solution for kiosk integrators and Instore Retail.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
iiyama TF1534MC-B6X, ProLite. Display diagonal: 38.1 cm (15"), Response time: 8 ms, Display brightness: 370 cd/m². Product colour: Black, International Protection (IP) code: IP65. Touch technology: Multi-touch, Touchscreen technology: Projected capacitive system, Touchscreen type: Multi-user. Panel mounting interface: 100 x 100 mm. Power supply type: DC, Power consumption (typical): 9 W, Power consumption (standby): 2 W
touch screen monitors
| 556448 | |
| Display | |
| Display diagonal: | 38.1 cm (15") |
| Response time: | 8 ms |
| Display brightness: | 370 cd/m² |
| Display technology: | TN |
| Contrast ratio (typical): | 700 |
| Display resolution: | 1024 x 768 pixels |
| Aspect ratio: | 4 |
| Pixel pitch: | 0.297 x 0.297 mm |
| Horizontal scan range: | 31.4 - 60 kHz |
| Vertical scan range: | 50 - 75 Hz |
| Viewing angle, horizontal: | 170° |
| Viewing angle, vertical: | 160° |
| Display viewable area (HxV): | 304 x 228 mm |
| Separate H/V sync: | Y |
| Display diagonal (metric): | 38 cm |
| Display number of colours: | 16.78 million colors |
| Design | |
| Product colour: | Black |
| International Protection (IP) code: | IP65 |
| Performance | |
| Touch technology: | Multi-touch |
| Touchscreen technology: | Projected capacitive system |
| Built-in camera: | N |
| Built-in microphone: | N |
| OmniTapps Multitouch compatibility: | N |
| Touchscreen type: | Multi-user |
| Number of simultaneous touchpoints: | 10 |
| HDCP: | Y |
| Number of OSD languages: | 7 |
| On Screen Display (OSD) languages: | German, English, Spanish, French, Italian, Japanese |
| Plug and Play: | Y |
| Ports & interfaces | |
| USB Touch port: | Y |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Ergonomics | |
| Wall mountable: | Y |
| Panel mounting interface: | 100 x 100 mm |
| VESA mounting: | Y |
| Power | |
| Power supply type: | DC |
| Power consumption (typical): | 9 W |
| Power consumption (standby): | 2 W |
| Power consumption (off): | 2 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage relative humidity (H-H): | 10 - 90% |
| Certificates | |
| Certification: | CB, CE, TÜV-Bauart, EAC, cULus |
| Weight & dimensions | |
| Width: | 337.5 mm |
| Height: | 265.5 mm |
| Depth: | 44.5 mm |
| Weight: | 2.7 kg |
| Packaging content | |
| Cables included: | AC,DisplayPort,HDMI,USB |
| Quick start guide: | Y |
| AC adapter included: | Y |
If you feel like anything is missing in these specifications, don't hesitate to contact us and raise the issue.
