ASUS

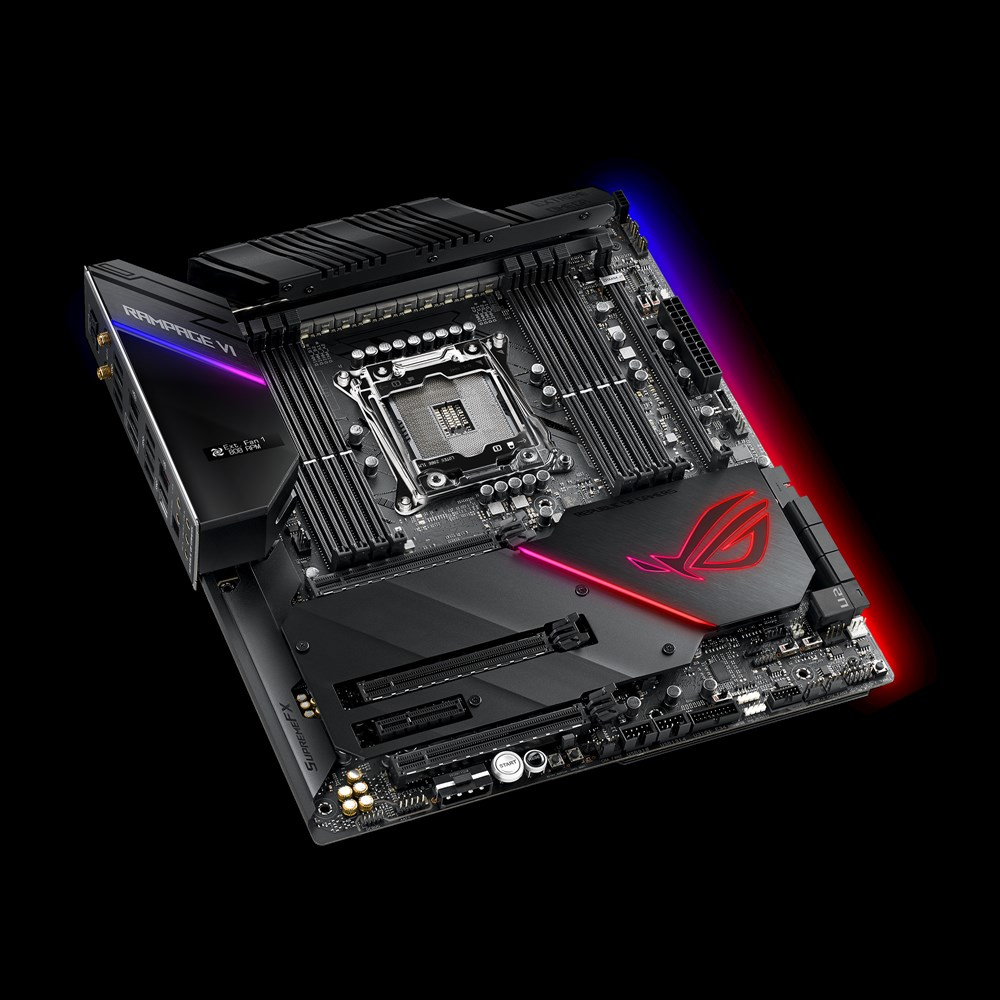

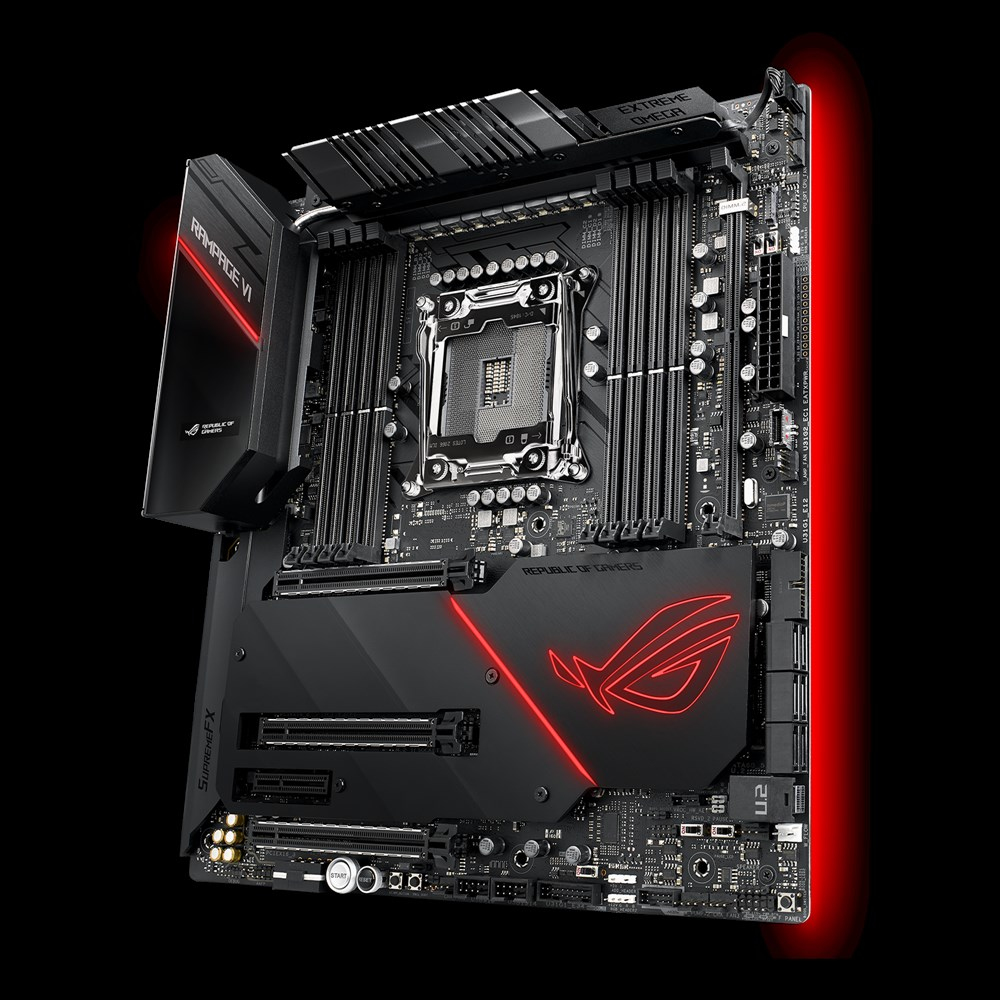

ROG RAMPAGE VI EXTREME OMEGA
ASUS ROG RAMPAGE VI EXTREME OMEGA, Intel, LGA 2066, Intel® Core™ X-series, DDR4-SDRAM, DIMM, 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz
PERFORMANCE
We've rethought and refined every aspect of Rampage VI Extreme Omega to provide the solid foundation needed to create an extreme gaming system that delivers the highest performance.
COOLING
Effective cooling is extremely important for up to 18-core processing beasts, even at stock speeds. That's why ROG Rampage VI Extreme Omega is fully armed to provide the best foundation for extreme PC systems, enabling higher performance at lower temperatures.
OPTIMIZATION
Rampage VI Extreme Omega is packed with intuitive and flexible tools that let you customize every aspect of your system to deliver the performance and features you want. Take advantage of 5-Way Optimization for intelligent, automatic overclocking or enjoy full manual control via comprehensive UEFI BIOS settings.
CONNECTIVITY
Together with customizable audio profiles and tools to optimize storage and networking performance, Rampage VI Extreme Omega provides the ability to create an expertly tuned machine with minimal effort.
PERSONALIZED FOR YOU
In addition to extraordinary performance, Rampage VI Extreme Omega provides extensive styling and customization options to let you build a system that truly stands apart.
THE POWER OF INTEL
Intel X299 chipset
The Intel X299 chipset supports LGA 2066-socket Intel Core X-Series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
Intel Core X-Series processors for LGA 2066 socket
Intel Core X-Series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
ASUS ROG RAMPAGE VI EXTREME OMEGA. Processor manufacturer: Intel, Processor socket: LGA 2066, Compatible processor series: Intel® Core™ X-series. Supported memory types: DDR4-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz. Parallel processing technology support: 2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,3-Way SLI. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Aquantia AQtion AQC107, Wi-Fi standards: Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel
Motherboards
| 520817 | |
| Processor | |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 2066 |
| Compatible processor series: | Intel® Core™ X-series |
| Memory | |
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 8 |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz |
| Memory channels: | Quad |
| Non-ECC: | Y |
| Unbuffered memory: | Y |
| Storage controllers | |
| RAID levels: | 0,1,5,10 |
| Graphics | |
| Parallel processing technology support: | 2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,3-Way SLI |
| Internal I/O | |
| USB 2.0 connectors: | 2 |
| USB 3.0 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 6 |
| Front panel audio connector: | Y |
| ATX Power connector (24-pin): | Y |
| CPU fan connector: | Y |
| Number of chassis fan connectors: | 3 |
| EPS power connector (8-pin): | Y |

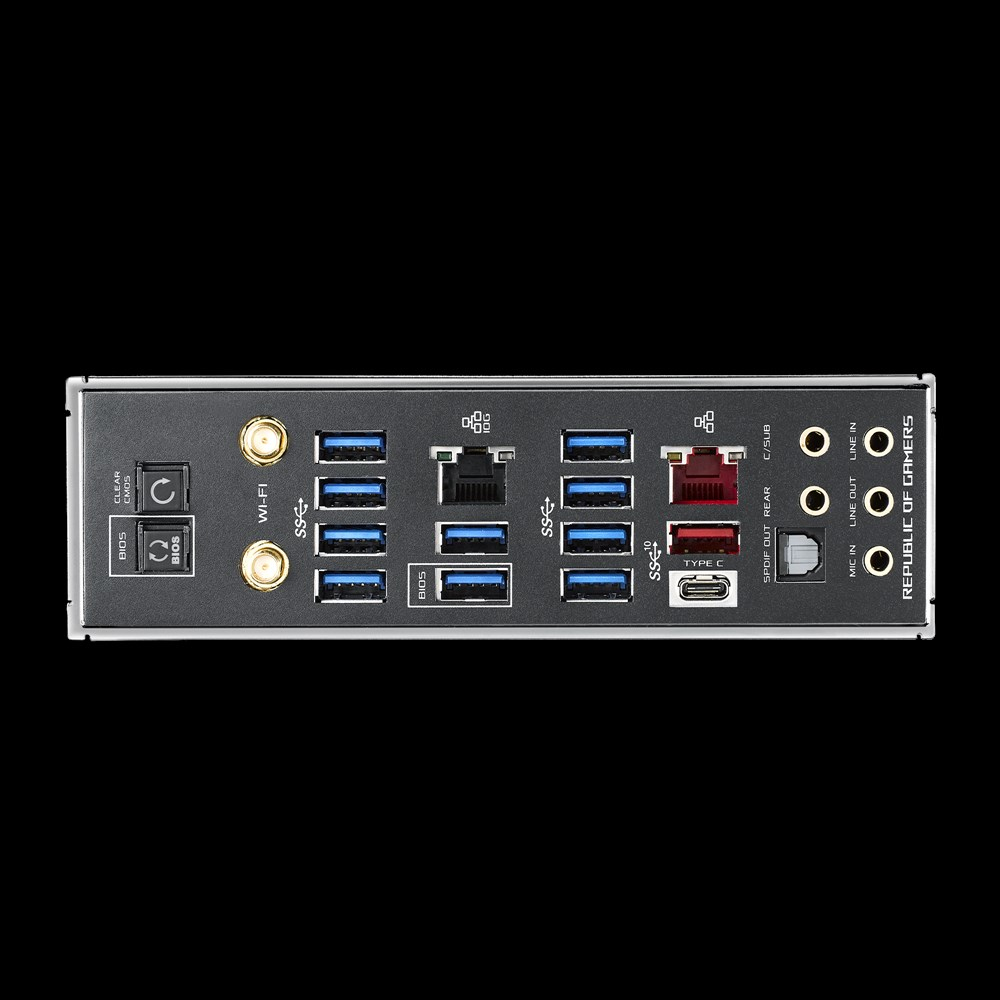

| Back panel I/O ports | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity: | 10 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| S/PDIF out port: | Y |
| Networking | |
| Ethernet LAN: | Y |
| Wi-Fi: | Y |
| Ethernet interface type: | 10 Gigabit Ethernet |
| LAN controller: | Aquantia AQtion AQC107 |
| Wi-Fi standards: | Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Bluetooth: | Y |
| Bluetooth version: | 5.0 |
| Features | |
| Component for: | PC |
| Motherboard form factor: | Extended ATX |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel® X299 |
| Audio output channels: | 8.0 channels |
| Windows operating systems supported: | Windows 10 x64 |
| Expansion slots | |
| PCI Express x4 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 3 |
| Number of M.2 (M) slots: | 1 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 6.0 |
| Clear CMOS button: | Y |
| Plug and Play: | Y |
| System management BIOS (SMBIOS) version: | 3.0 |
| Processor special features | |
| Intel® Turbo Boost Technology: | 3.0 |
| Intel Extreme Memory Profile (XMP): | Y |
| Weight & dimensions | |
| Width: | 305 mm |
| Depth: | 277 mm |
If you feel like anything is missing in these specifications, don't hesitate to contact us and raise the issue.
