Intel
Core
i7
i7-9700K

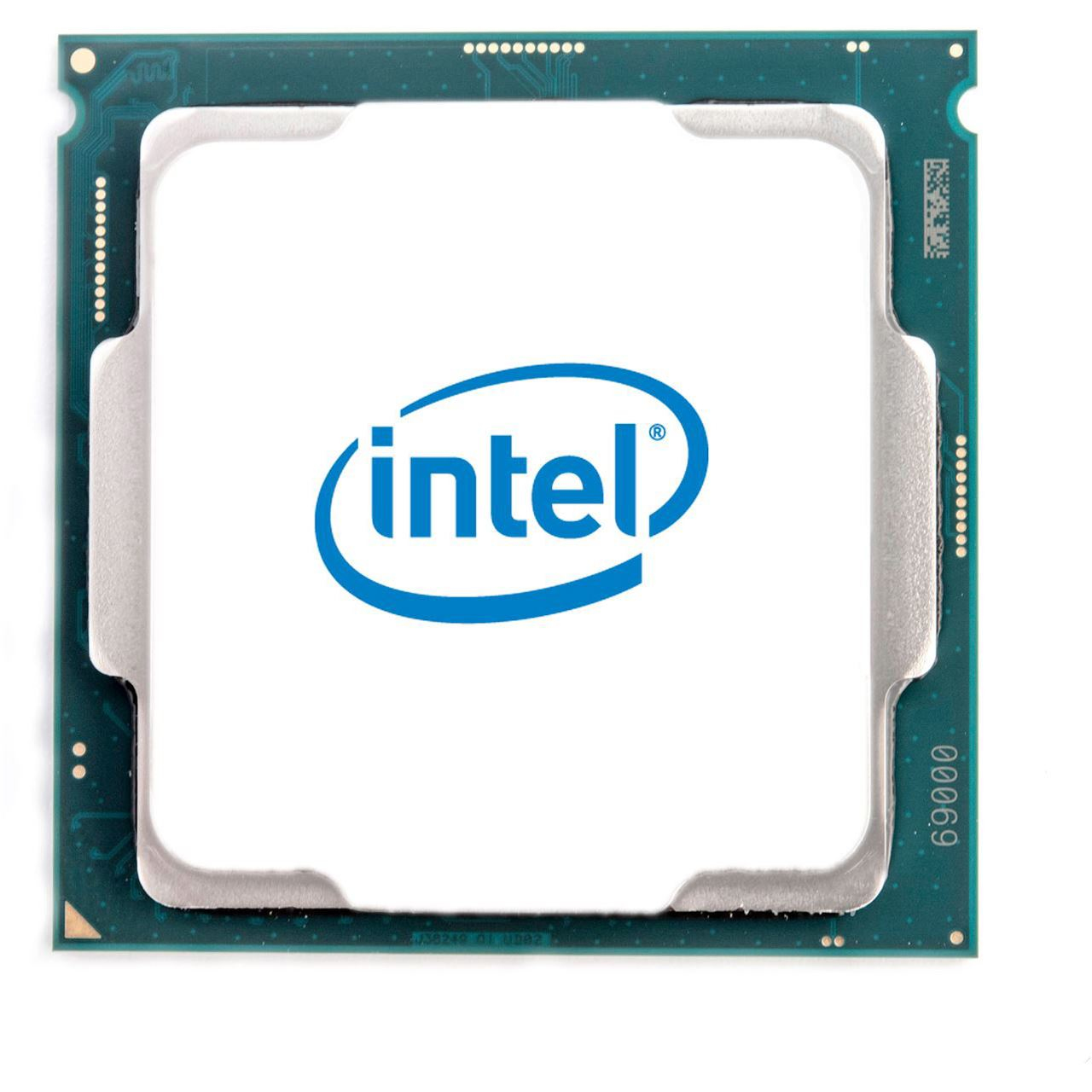

Intel Core i7-9700K, 9th gen Intel® Core™ i7, 3.6 GHz, LGA 1151 (Socket H4), PC, 14 nm, i7-9700K
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® vPro™ Platform Eligibility
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel i7-9700K, Core. Processor family: 9th gen Intel® Core™ i7, Processor frequency: 3.6 GHz, Processor socket: LGA 1151 (Socket H4). Memory channels: Dual, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics adapter model: Intel® UHD Graphics 630, Maximum on-board graphics adapter memory: 64 GB, On-board graphics adapter outputs supported: DisplayPort,Embedded DisplayPort (eDP),HDMI. Thermal Design Power (TDP): 95 W. PCI Express configurations: 1x16,1x8+2x4,2x8, Supported instruction sets: AVX 2.0,SSE4.1,SSE4.2, Scalability: 1S
processors
| 501846 | |
| Processor | |
| Processor family: | 9th gen Intel® Core™ i7 |
| Processor frequency: | 3.6 GHz |
| Processor cores: | 8 |
| Processor socket: | LGA 1151 (Socket H4) |
| Component for: | PC |
| Processor lithography: | 14 nm |
| Box: | Y |
| Cooler included: | N |
| Processor model: | i7-9700K |
| Processor threads: | 8 |
| System bus rate: | 8 GT/s |
| Processor operating modes: | 64-bit |
| Processor cache: | 12 MB |
| Processor cache type: | Smart Cache |
| Stepping: | P0 |
| Processor boost frequency: | 4.9 GHz |
| Bus type: | DMI3 |
| Processor codename: | Coffee Lake |
| Memory bandwidth supported by processor (max): | 41.6 GB/s |
| Processor code: | SRELT |
| Processor ARK ID: | 186604 |
| Memory | |
| Memory channels: | Dual |
| Maximum internal memory supported by processor: | 64 GB |
| Memory types supported by processor: | DDR4-SDRAM |
| Memory clock speeds supported by processor: | 2666 MHz |
| ECC: | N |
| Graphics | |
| On-board graphics adapter: | Y |
| Discrete graphics adapter: | N |
| On-board graphics adapter model: | Intel® UHD Graphics 630 |
| Maximum on-board graphics adapter memory: | 64 GB |
| On-board graphics adapter outputs supported: | DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter base frequency: | 350 MHz |
| On-board graphics adapter dynamic frequency (max): | 1200 MHz |
| Number of displays supported (on-board graphics): | 3 |
| On-board graphics adapter 4K support: | Y |
| On-board graphics adapter DirectX version: | 12.0 |
| On-board graphics adapter OpenGL version: | 4.5 |
| On-board graphics adapter maximum resolution (DisplayPort): | 4096 x 2304 pixels |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel): | 4096 x 2304 pixels |
| On-board graphics adapter maximum resolution (HDMI): | 4096 x 2304 pixels |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort): | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel): | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (HDMI): | 24 Hz |
| On-board graphics adapter ID: | 0x3E98 |
| Power | |
| Thermal Design Power (TDP): | 95 W |
| Features | |
| Execute Disable Bit: | Y |
| Idle States: | Y |
| Thermal Monitoring Technologies: | Y |
| Maximum number of PCI Express lanes: | 16 |
| PCI Express slots version: | 3.0 |
| PCI Express configurations: | 1x16,1x8+2x4,2x8 |
| Supported instruction sets: | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability: | 1S |
| CPU configuration (max): | 1 |
| Embedded options available: | N |
| Thermal solution specification: | PCG 2015D |
| PCI Express CEM revision: | 3.0 |
| Market segment: | DT |
| Harmonized System (HS) code: | 8542310001 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology): | N |
| Intel® Identity Protection Technology (Intel® IPT): | Y |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel® vPro™ Technology: | Y |
| Intel® Quick Sync Video Technology: | Y |
| Intel® InTru™ 3D Technology: | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD): | Y |
| Intel® AES New Instructions (Intel® AES-NI): | Y |
| Enhanced Intel SpeedStep Technology: | Y |
| Intel Trusted Execution Technology: | Y |
| Intel® Memory Protection Extensions (Intel® MPX): | Y |
| Intel Enhanced Halt State: | Y |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): | Y |
| Intel VT-x with Extended Page Tables (EPT): | Y |
| Intel® Secure Key: | Y |
| Intel TSX-NI: | Y |
| Intel Stable Image Platform Program (SIPP): | Y |
| Intel® OS Guard: | Y |
| Intel Clear Video Technology: | Y |
| Intel Software Guard Extensions (Intel SGX): | Y |
| Intel 64: | Y |
| Intel Identity Protection Technology version: | 1.00 |
| Intel Secure Key Technology version: | 1.00 |
| Intel Stable Image Platform Program (SIPP) version: | 1.00 |
| Intel Virtualization Technology (VT-x): | Y |
| Intel Virtualization Technology for Directed I/O (VT-d): | Y |
| Intel TSX-NI version: | 1.00 |
| Intel® Optane™ Memory Ready: | Y |
| Intel® Boot Guard: | Y |
| Operational conditions | |
| Tjunction: | 100 °C |
| Processor cache: | 12288 KB |
| Product type: | Processor |
| Maximum graphics adapter memory: | 64 GB |
| Weight & dimensions | |
| Processor package size: | 37.5 x 37.5 mm |
| Other features | |
| Maximum internal memory: | 65536 MB |
| Processor | |
| Generation: | 9th Generation |
| Processor special features | |
| Intel® vPro™ Platform Eligibility: | Y |
| Bus bandwidth: | 8 |
| Bus type units: | GT/s |
| Launch date: | Q4'18 |
| Maximum resolution & refresh rate (DisplayPort): | 4096x2304@60Hz |
| Maximum resolution & refresh rate (HDMI): | 4096x2304@24Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel): | 4096x2304@60Hz |
| Status: | Launched |
| Maximum memory: | 128 GB |
| Processor brand name: | 9th Gen Intel Core i7 9th Gen Intel Core i7 Processor |
| Last change: | 63903513 |
| Product family: | Intel Core Processors |
| Bus speed: | 8 GT/s |
| Processor ID: | 0x3E98 |
