iiyama
ProLite
T2454MSC-B1AG
iiyama ProLite T2454MSC-B1AG, 60.5 cm (23.8"), 4 ms, 250 cd/m², IPS, 1000:1, 1920 x 1080 pixels
24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
AG COATING
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.
iiyama T2454MSC-B1AG, ProLite. Display diagonal: 60.5 cm (23.8"), Response time: 4 ms, Display brightness: 250 cd/m². Product colour: Black, International Protection (IP) code: IPX1. Touch technology: Multi-touch, Touchscreen technology: Projected capacitive system, Touchscreen type: Multi-user. Audio input: 3.5mm. Height adjustment: 7 cm, Tilt angle range: -5 - 90°, Panel mounting interface: 100 x 100 mm
touch screen monitors
| 496567 | |
| Display | |
| Display diagonal: | 60.5 cm (23.8") |
| Response time: | 4 ms |
| Display brightness: | 250 cd/m² |
| Display technology: | IPS |
| Contrast ratio (typical): | 1000 |
| Display resolution: | 1920 x 1080 pixels |
| Display type: | LED |
| Aspect ratio: | 16 |
| Pixel pitch: | 0.274 x 0.274 mm |
| Horizontal scan range: | 30 - 80 kHz |
| Vertical scan range: | 56 - 75 Hz |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Display viewable area (HxV): | 527.04 x 296.46 mm |
| Contrast ratio (dynamic): | 5000000 |
| Full HD: | Y |
| Display diagonal (metric): | 60.5 cm |
| LED backlight: | Y |
| Supported graphics resolutions: | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080) |
| Display number of colours: | 16.78 million colors |
| Design | |
| Product colour: | Black |
| International Protection (IP) code: | IPX1 |
| Performance | |
| Touch technology: | Multi-touch |
| Touchscreen technology: | Projected capacitive system |
| Built-in camera: | N |
| Built-in microphone: | N |
| OmniTapps Multitouch compatibility: | N |
| Touchscreen type: | Multi-user |
| Number of simultaneous touchpoints: | 10 |
| Megapixel: | 2.1 MP |
| Mean time between failures (MTBF): | 30000 h |
| Built-in speaker(s): | Y |
| RMS rated power: | 4 W |
| HDCP: | Y |
| Number of OSD languages: | 10 |
| On Screen Display (OSD) languages: | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Windows operating systems supported: | Y |
| Linux operating systems supported: | Y |
| Plug and Play: | Y |
| Ports & interfaces | |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB Touch port: | Y |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Audio input: | 3.5mm |
| Ergonomics | |
| Wall mountable: | Y |
| Height adjustment: | Y |
| Height adjustment: | 7 cm |
| Tilt angle range: | -5 - 90° |
| Panel mounting interface: | 100 x 100 mm |
| Placement supported: | Horizontal/Vertical |
| Tilt adjustment: | Y |
| Cable lock slot: | Y |
| VESA mounting: | Y |
| Cable lock slot type: | Kensington |
| Power | |
| Power supply type: | AC |
| Power consumption (typical): | 24 W |
| Power consumption (standby): | 0.5 W |
| AC input voltage: | 100-240 V |
| AC input frequency: | 50 - 60 Hz |
| Energy efficiency class: | B |
| Operational conditions | |
| Operating temperature (T-T): | 5 - 35 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage relative humidity (H-H): | 10 - 90% |
| Certificates | |
| RoHS compliance: | Y |
| Certification: | CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| Weight & dimensions | |
| Width: | 540.5 mm |
| Height: | 322.5 mm |
| Depth: | 46.5 mm |
| Weight: | 5.5 kg |
| Dimensions (W x D x H) with stand: | 540.5 x 128 x 388 mm |
| Packaging content | |

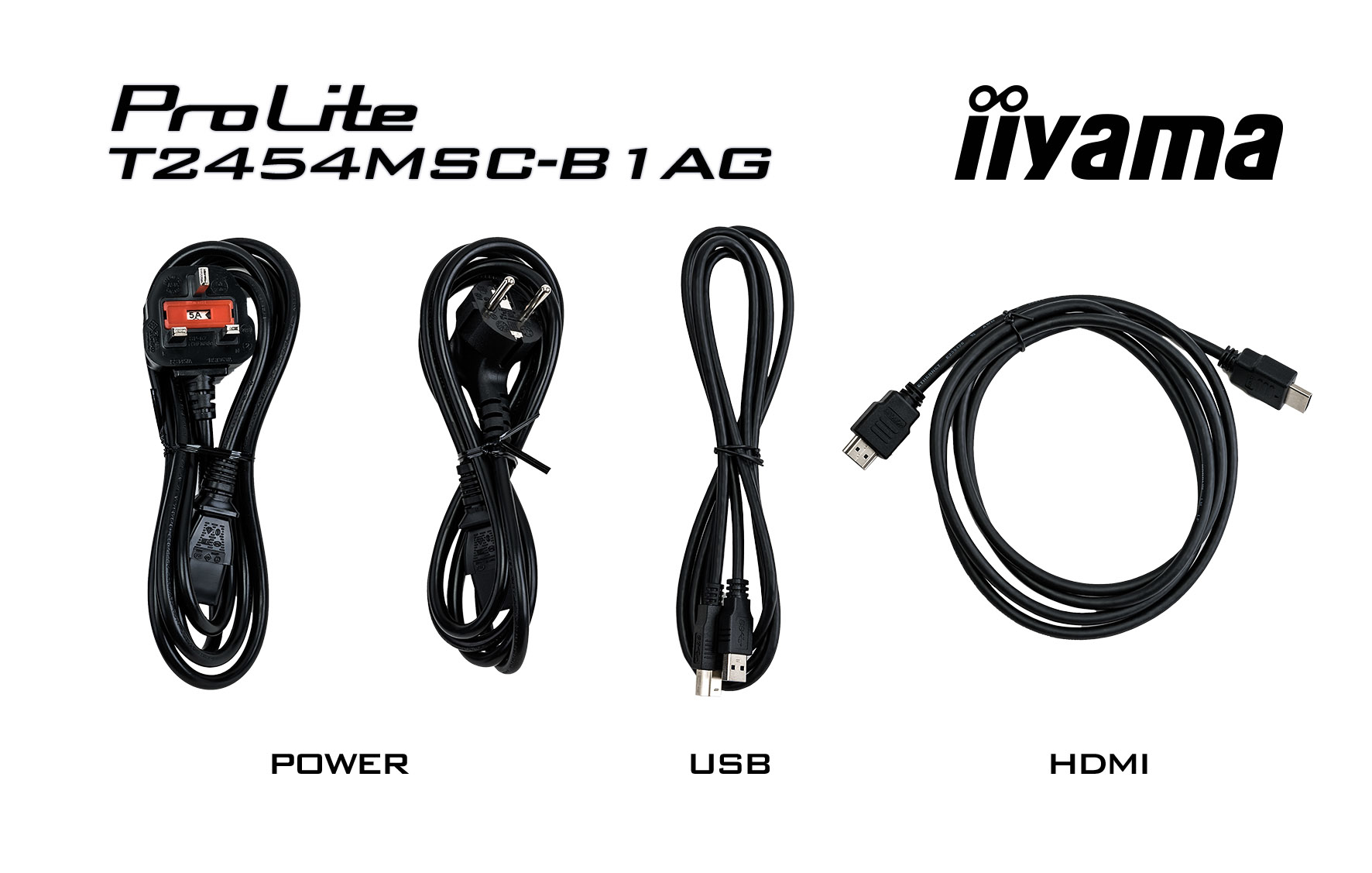

| Cables included: | AC,HDMI,USB,VGA |
| Quick start guide: | Y |
If you feel like anything is missing in these specifications, don't hesitate to contact us and raise the issue.
