iiyama
ProLite
T1731SR-W5

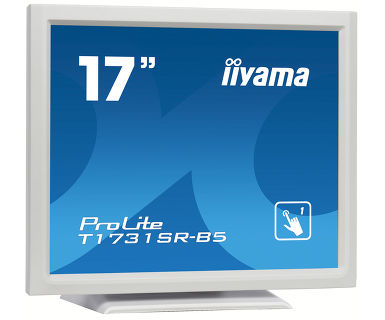

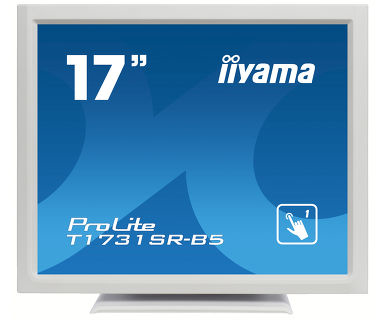

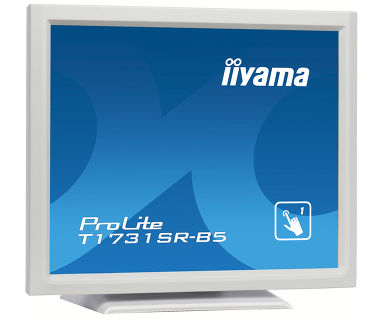

iiyama ProLite T1731SR-W5, 43.2 cm (17"), 5 ms, 200 cd/m², TN, 1000:1, 1280 x 1024 pixels
ProLite T1731SR-W5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-W5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.
iiyama T1731SR-W5, ProLite. Display diagonal: 43.2 cm (17"), Response time: 5 ms, Display brightness: 200 cd/m². Product colour: White, International Protection (IP) code: IP54. Touch technology: Single-touch, Touchscreen technology: Resistive, Megapixel: 1.3 MP. Tilt angle range: -5 - 90°, Panel mounting interface: 100 x 100 mm, Cable lock slot type: Kensington. Power supply type: AC, Power consumption (typical): 20 W, Power consumption (standby): 2 W
touch screen monitors
| 496562 | |
| Display | |
| Display diagonal: | 43.2 cm (17") |
| Response time: | 5 ms |
| Display brightness: | 200 cd/m² |
| Display technology: | TN |
| Contrast ratio (typical): | 1000 |
| Display resolution: | 1280 x 1024 pixels |
| Aspect ratio: | 5 |
| Anti-glare surface: | Y |
| Pixel pitch: | 0.264 x 0.264 mm |
| Horizontal scan range: | 31 - 80 kHz |
| Vertical scan range: | 50 - 75 Hz |
| Viewing angle, horizontal: | 170° |
| Viewing angle, vertical: | 160° |
| Display viewable area (HxV): | 338 x 270 mm |
| Separate H/V sync: | Y |
| Full HD: | N |
| Display diagonal (metric): | 43 cm |
| Display number of colours: | 16.78 million colors |
| Design | |
| Product colour: | White |
| International Protection (IP) code: | IP54 |
| Performance | |
| Touch technology: | Single-touch |
| Touchscreen technology: | Resistive |
| Built-in camera: | N |
| Megapixel: | 1.3 MP |
| Built-in speaker(s): | Y |
| RMS rated power: | 2 W |
| HDCP: | Y |
| Number of OSD languages: | 7 |
| On Screen Display (OSD) languages: | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of speakers: | 2 |
| Card reader integrated: | N |
| Windows operating systems supported: | Y |
| Linux operating systems supported: | Y |
| Plug and Play: | Y |
| Ports & interfaces | |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Audio input: | 1 |
| Ergonomics | |
| Wall mountable: | Y |
| Tilt angle range: | -5 - 90° |
| Panel mounting interface: | 100 x 100 mm |
| Tilt adjustment: | Y |
| Cable lock slot: | Y |
| LED indicators: | Y |
| VESA mounting: | Y |
| Cable lock slot type: | Kensington |
| Power | |
| Power supply type: | AC |
| Power consumption (typical): | 20 W |
| Power consumption (standby): | 2 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 / 60 Hz |
| Power management: | Y |
| Energy efficiency class: | A |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage relative humidity (H-H): | 10 - 90% |
| Certificates | |
| Certification: | CB, CE, TÜV-Bauart, VCCI, GOST |
| Weight & dimensions | |
| Width: | 387 mm |
| Height: | 342 mm |
| Depth: | 201 mm |
| Weight: | 5.8 kg |
| Packaging content | |
| Cables included: | AC,Audio (3.5mm),DisplayPort,HDMI,USB |
| Quick start guide: | Y |
