iiyama
ProLite
T1531SR-B5

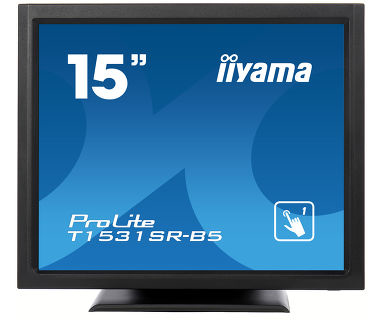

iiyama ProLite T1531SR-B5, 38.1 cm (15"), 8 ms, 370 cd/m², TN, 700:1, 1024 x 768 pixels
15” 5-wire resistive touchscreen

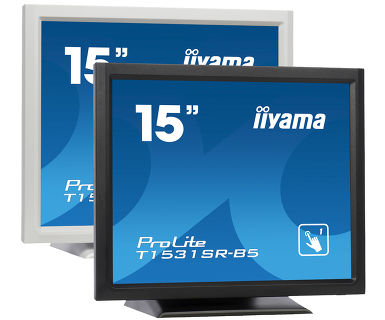

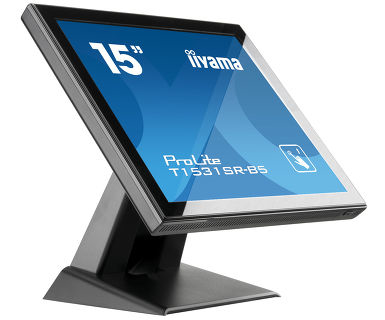

ProLite T1531SR-B5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1531SR-B5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.
ip54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
iiyama T1531SR-B5, ProLite. Display diagonal: 38.1 cm (15"), Response time: 8 ms, Display brightness: 370 cd/m². Product colour: Black, International Protection (IP) code: IP54. Touchscreen technology: Resistive, RMS rated power: 2 W, On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese. Tilt angle range: -5 - 90°, Panel mounting interface: 100 x 100 mm, Cable lock slot type: Kensington. Power supply type: AC, Power consumption (typical): 16 W, Power consumption (standby): 2 W
touch screen monitors
| 478929 | |
| Display | |
| Display diagonal: | 38.1 cm (15") |
| Response time: | 8 ms |
| Display brightness: | 370 cd/m² |
| Display technology: | TN |
| Contrast ratio (typical): | 700 |
| Display resolution: | 1024 x 768 pixels |
| Display type: | LED |
| Aspect ratio: | 4 |
| Pixel pitch: | 0.297 x 0.297 mm |
| Horizontal scan range: | 31.5 - 60 kHz |
| Vertical scan range: | 56 - 75 Hz |
| Viewing angle, horizontal: | 170° |
| Viewing angle, vertical: | 160° |
| Viewable size diagonal: | 38 cm |
| Full HD: | N |
| Display diagonal (metric): | 38 cm |
| Viewable size, horizontal: | 30.4 cm |
| Viewable size, vertical: | 22.8 cm |
| Design | |
| Product colour: | Black |
| International Protection (IP) code: | IP54 |
| Performance | |
| Touchscreen technology: | Resistive |
| Built-in camera: | N |
| Built-in microphone: | N |
| Number of simultaneous touchpoints: | 1 |
| Built-in speaker(s): | Y |
| RMS rated power: | 2 W |
| HDCP: | Y |
| Number of OSD languages: | 7 |
| On Screen Display (OSD) languages: | German, English, Spanish, French, Italian, Japanese |
| Number of speakers: | 2 |
| Card reader integrated: | N |
| Windows operating systems supported: | Y |
| Linux operating systems supported: | Y |
| Plug and Play: | Y |
| Networking | |
| Ethernet LAN: | N |
| Ports & interfaces | |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Ergonomics | |
| Wall mountable: | Y |
| Tilt angle range: | -5 - 90° |
| Panel mounting interface: | 100 x 100 mm |
| Tilt adjustment: | Y |
| Cable lock slot: | Y |
| LED indicators: | Y |
| VESA mounting: | Y |
| Cable lock slot type: | Kensington |
| Power | |
| Power supply type: | AC |
| Power consumption (typical): | 16 W |
| Power consumption (standby): | 2 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 / 60 Hz |
| Power management: | Y |
| Energy efficiency class: | A |
| Certificates | |
| Certification: | CB, CE, TÜV, CU, cULus, VCCI |
| Weight & dimensions | |
| Width: | 351 mm |
| Height: | 306 mm |
| Depth: | 201 mm |
| Weight: | 4.8 kg |
| Packaging content | |
| Cables included: | AC,Audio (3.5mm),DisplayPort,HDMI,USB |
| Quick start guide: | Y |
